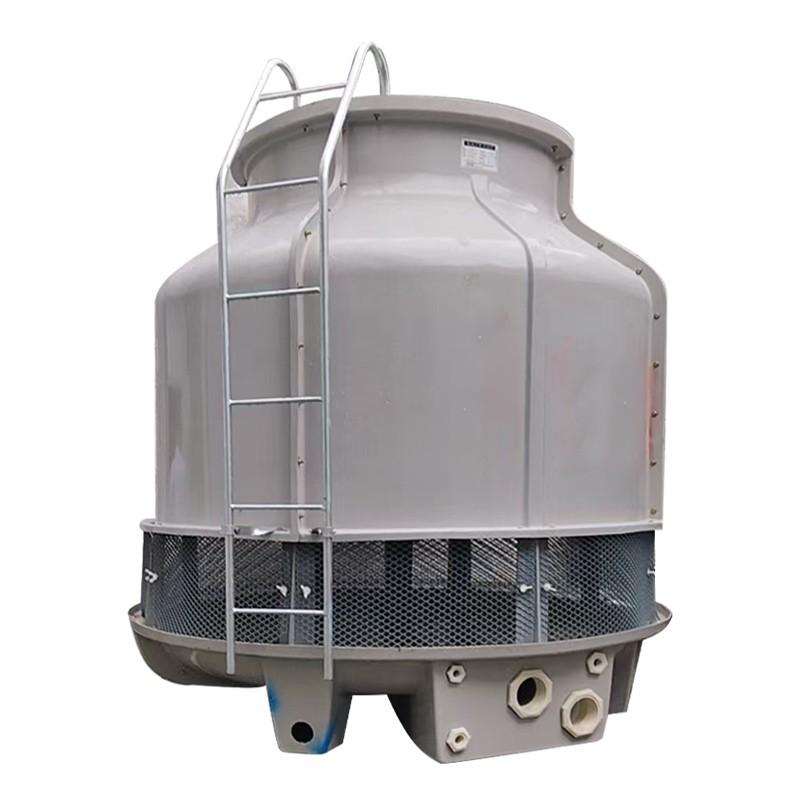

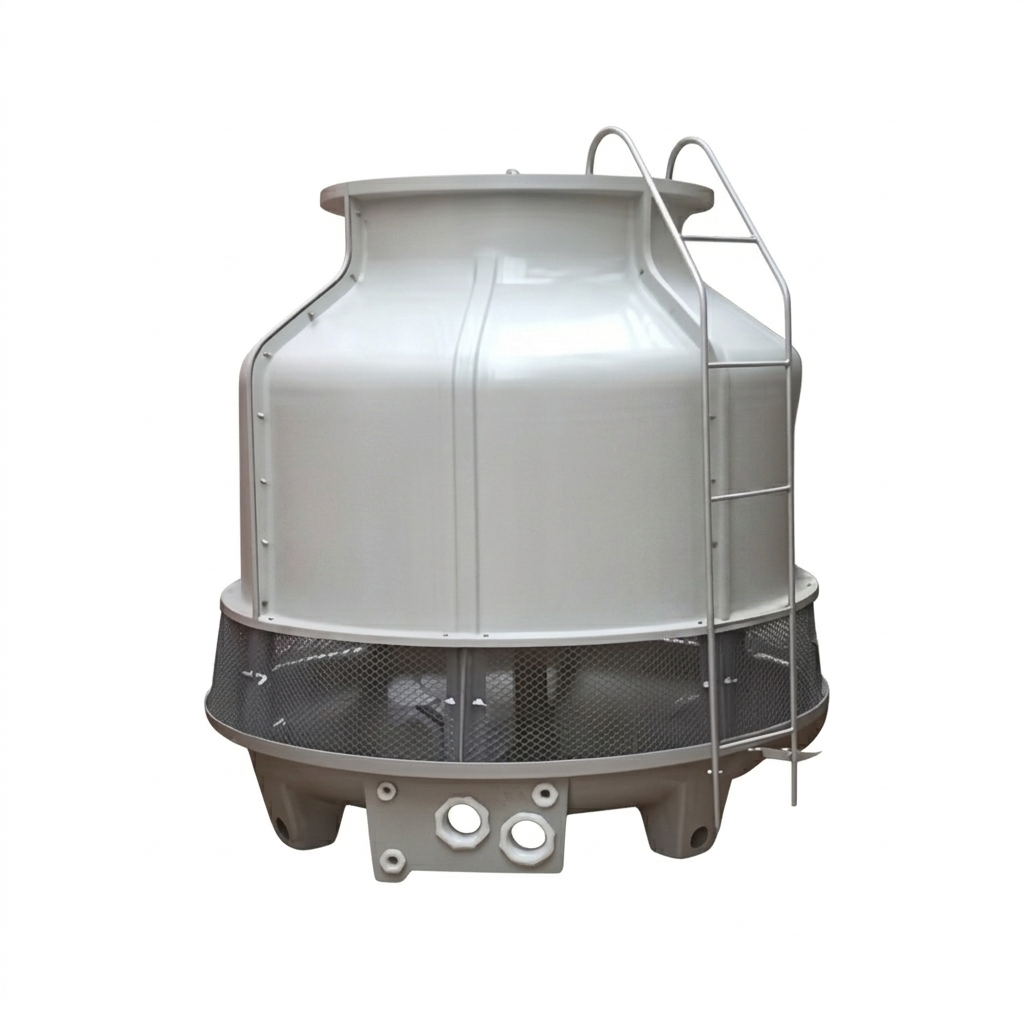

Water Cooling Tower Machine Paremeter
| Model | ZL-100T |
| Water Flow | 78.10m3/h |
| Motot Power | 2.2kw |
| Headloss | 21kpa |
| Air Flow | 700cmm |
| Machine Size | High:2570mm Diameter:2900mm |
| Net Weight | 500KG |
NOTE:The above are the parameters of conventional circular cooling towers. There are also high-temperature types and directional cooling towers that can be customized. For detailed details, please contact us.
Machine Introduction
A water cooling tower is usually composed of tower body, packing, fan, sump and other parts. Hot water sprays down from the top of the tower and flows through the surface of the packing to form a water film, increasing the contact area with air. The fan sucks in air from the bottom of the tower and flows upward through the packing to exchange heat with water and take away the heat in the water. The cooled water is collected in the sump and then sent back to the system that needs cooling.
Working Principle:
Cooling towers operate on the principle of evaporative cooling. Warm water from the system enters the cooling tower and is distributed over a large surface area.
Air is drawn through the tower, either by natural convection or mechanical means (fans), causing a portion of the water to evaporate.
The evaporation process absorbs heat, cooling the remaining water, which is then collected and recirculated back into the system.
Advantages：
Applications：
1.Power Generation**: Cooling the water used in steam turbines.
2.Petrochemical and Chemical Plants**: Removing heat from various processes.
3.HVAC Systems**: Cooling the water in large commercial and residential buildings.
4.Manufacturing**: Cooling water in processes like plastic injection molding, food processing, etc.
FAQ:
Quick Specs: ZL-CT40 industrial round cooling tower with 40-ton cooling capacity, FRP material, counter-flow design, 1.5kW fan, CE certified. Best for industrial chiller systems and mid-scale manufacturing. The water cooling tower is a device used for cooling circulating water. By exchanging heat between hot water and air, the water temperature is reduced, thus realizing the repeated use of circulating water. Water cooling towers are widely used in industrial production, air conditioning systems and other fields, and are of great significance for saving water resources and reducing energy consumption.
Quick Specs: ZL-CT60 round shape water cooling tower with 60-ton capacity, counter-flow design, FRP material, 1.5kW fan, CE certified. Best for industrial chiller systems and large-scale cooling. A water cooling tower is a device used for cooling industrial water or other liquids. Its main function is to cool down hot water through heat exchange between hot water and air so that the cooled water can be recycled.
Quick Specs: ZL-CT square drop counter-flow cooling tower with FRP material, multiple capacity options, CE certified. Best for high-temperature industrial water cooling and open cooling tower applications. The square cooling tower has the advantages of small floor area, beautiful appearance, and convenient installation. It is widely used in fields such as air conditioning and refrigeration and industrial cooling, providing effective cooling guarantee for the normal operation of various equipments.
Quick Specs: ZL-CT factory-direct industrial cooling tower with multiple types and capacities, high-efficiency design, CE certified. Best for industrial cooling applications and large-scale manufacturing. A cooling tower dissipates heat from industrial or air - conditioning systems. Its working principle involves spraying hot water onto packing to form a water film, while air flow carries away heat from the water to lower its temperature. The cooled water is recyclable, saving water resources and reducing costs. There are various types, such as open and closed cooling towers. Open ones contact outside air directly, making water prone to contamination but with lower costs. Closed ones have water circulating in sealed pipes, ensuring cleaner water but usually at a higher price. Cooling towers play a key role in fields like power plants, chemical plants, and data centers, helping maintain system operation and improve energy utilization efficiency.
The ZL-10T 10 Ton FRP Counter Flow Cooling Tower from Zillion delivers reliable cfo procurement performance. Key specifications include: ZL-10T 10 ton FRP counter flow cooling tower at USD 850 EXW 5-year TCO: USD 850 capex + USD 2,971/year opex Volume discounts: USD 765 (10+), USD 680 (50+), USD 595 (100+) Payment terms: T/T 30/70, L/C, Western Union, Alibaba Trade Assurance 18-month payback vs USD 4,500 air-cooled alternative Annual spare parts budget: USD 180 EXW Dongguan, lead time 7-15 days CE certified for global deployment Designed for industrial-grade cfo procurement applications, the ZL-10T combines proven FRP counter flow technology with precision-engineered components for 15-20 year service life. CE / ISO 9001:2015 certified. Contact Leika at Leika@gdzillion.cn for quotation.
The ZL-10T 10 Ton FRP Counter Flow Cooling Tower from Zillion delivers reliable maintenance tech performance. Key specifications include: ZL-10T water chemistry: pH 6.5-9.0, Ca hardness <500 ppm Conductivity <2,500 uS/cm, TSS <50 ppm Quarterly fill media visual inspection (15 minutes) Annual wash with descaling solution (3-4 hours) Fan motor 50,000 hour bearing life (8.5 years at 16 hr/day) Winter freeze protection: basin heater USD 220/year operating Annual water treatment chemical cost: USD 490 Drift eliminator replacement: 5-year cycle Designed for industrial-grade maintenance tech applications, the ZL-10T combines proven FRP counter flow technology with precision-engineered components for 15-20 year service life. CE / ISO 9001:2015 certified. Contact Leika at Leika@gdzillion.cn for quotation.
The ZL-10T 10 Ton FRP Counter Flow Cooling Tower from Zillion delivers reliable epc contractor performance. Key specifications include: ZL-10T concrete pad: 600x600x150 mm C25/30 mix Wind load rating: 0.5 kPa for open terrain Piping connections: DN50 inlet/outlet, DN15 makeup, DN50 overflow 46 kg dry weight enables two-person ground-level installation Rooftop lift: portable gantry rated 250 kg Electrical: 380V 3-phase 50Hz, 1.2-1.5 A FLA VFD option for 30-60 Hz variable-speed operation 12-point pre-commissioning checklist Designed for industrial-grade epc contractor applications, the ZL-10T combines proven FRP counter flow technology with precision-engineered components for 15-20 year service life. CE / ISO 9001:2015 certified. Contact Leika at Leika@gdzillion.cn for quotation.
The ZL-10T 10 Ton FRP Counter Flow Cooling Tower from Zillion delivers reliable engineer technical performance. Key specifications include: ZL-10T 10 ton cooling capacity (35.2 kW heat rejection) Counter flow square FRP tower with 5C approach to wet-bulb 7.81 m3/h water flow at 5C range 0.37 kW fan motor (380V 3-phase 50Hz) 85 CMM airflow, 635 mm fan diameter Compact 940 x 1820 mm footprint, 46 kg dry weight 60 dB noise level for indoor/rooftop installation CE / ISO 9001:2015 certified, 1-year warranty Designed for industrial-grade engineer technical applications, the ZL-10T combines proven FRP counter flow technology with precision-engineered components for 15-20 year service life. CE / ISO 9001:2015 certified. Contact Leika at Leika@gdzillion.cn for quotation.
Our company's series of products are well-known in the plastic auxiliary machinery industry for their excellent performance and high cost performance.
