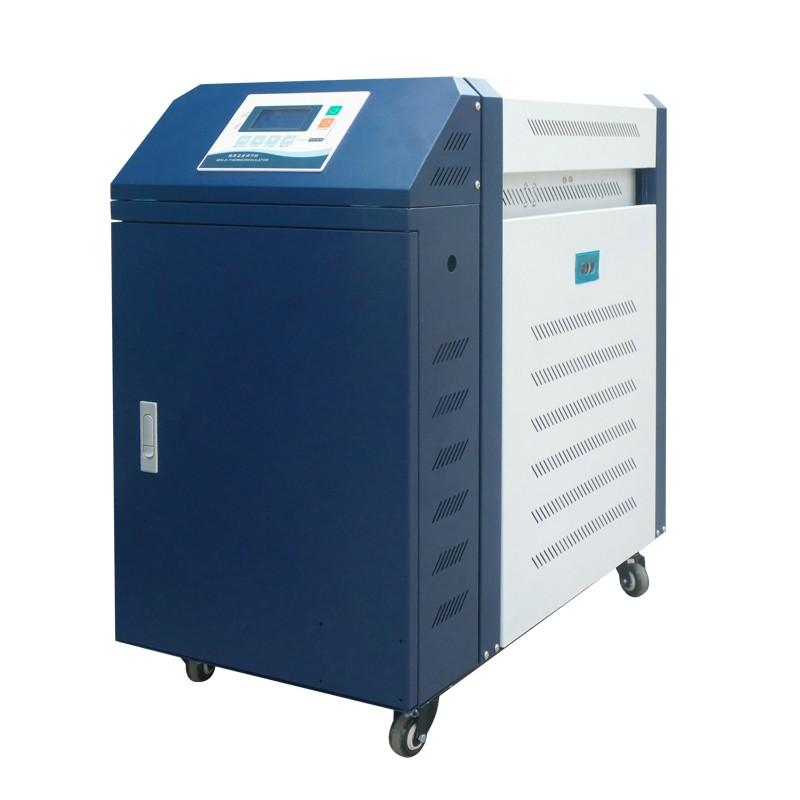

6KW Water-Heating Mold Thermostat Temperature Controller for Plastic Injection Molding Molds
6KW Water Heating Mold Temperature Controller Machine / Mold Heater For Plastic Injection Machine Technical Parameters
Heating Capacity: 5160 kcal/h, 6kW
Electrical System:
System Power: 380V AC 3P/PE 50Hz (Customization supported)
Input Power: 6.37kW
Heat Transfer Medium Type: Water
Pump ：Lift:32m ,Flow Rate: 45L/min ,Power: 0.37kW ,Operating Pressure: ≤10bar , Operating Temperature: +5 ~ +40℃
Heat Exchanger:
Maximum Temperature: 120℃ (Customization supported 160℃~220℃)
Minimum Temperature: Cooling water temperature ± 20℃
Temperature Deviation: PID±0.1℃
Cooling Method: Indirect cooling
Electrical Protection: Electrical protection, overcurrent protection, phase sequence/phase loss protection
Equipment Protection: Anti - dry burning protection, overload protection, over temperature protection, pressure protection
Equipment Description：Weight: 53kg Dimensions ,(L×W×H): 670*310*700mm
-----------------------------
Brand Pump
Equipped with a high - temperature resistant, high - pressure resistant, and low - noise pump. It ensures stable operation and an extended service life, delivering reliable performance you can count on.

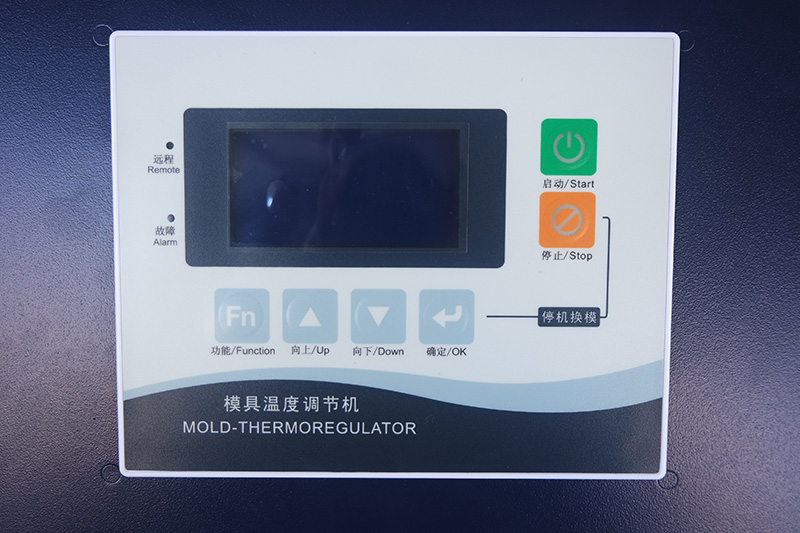

PID Display Controller
The PID display controller uses high-precision PID to regulate key parameters (temperature, pressure), shows real-time data, ensures stable equipment operation, and suits industrial scenarios.
Schneider Contactor
Comes with an isolated electrical control box, providing superior heat insulation. It effectively extends the service life of electrical components, ensuring efficient and lasting operation.
Pure Copper Interface
Both inlets and outlets adopt all - copper interfaces, offering excellent high - temperature resistance. (The 6KW model has two inlets and two outlets; the 9KW and 12KW models feature four inlets and four outlets)
Water Pressure Controller
Precisely regulates water pressure, stabilizes system operation, and safeguards equipment safety and efficiency.
-----------------------------
Product Introduction (Mold Temperature Controller)
This mold temperature controller is not only a core device for controlling mold temperature in industrial production, but also a key assistant in ensuring stable production processes and improving product quality. By precisely regulating mold temperature, it can not only ensure product forming accuracy, but also shorten the production cycle.

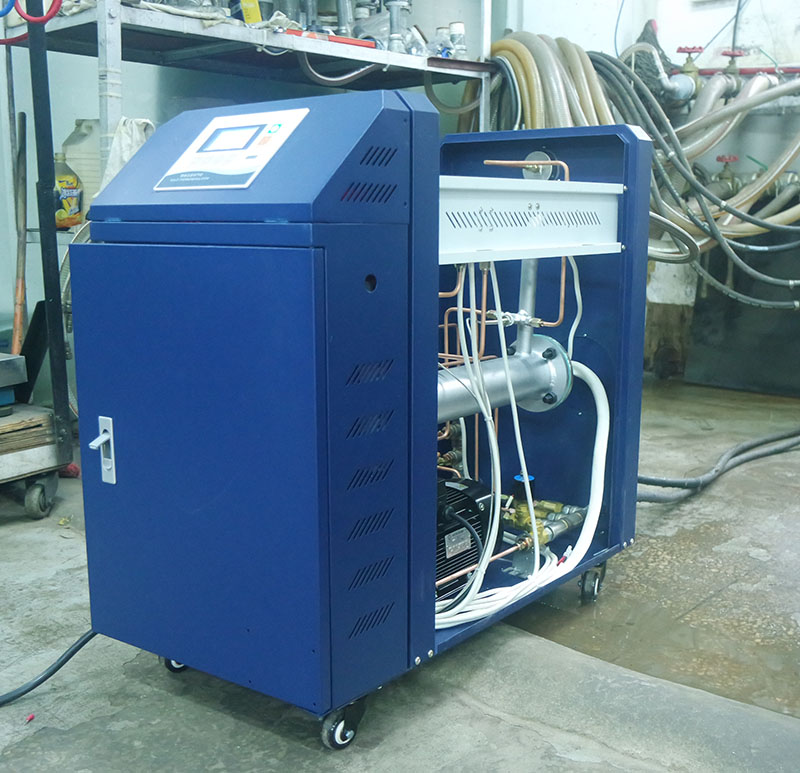

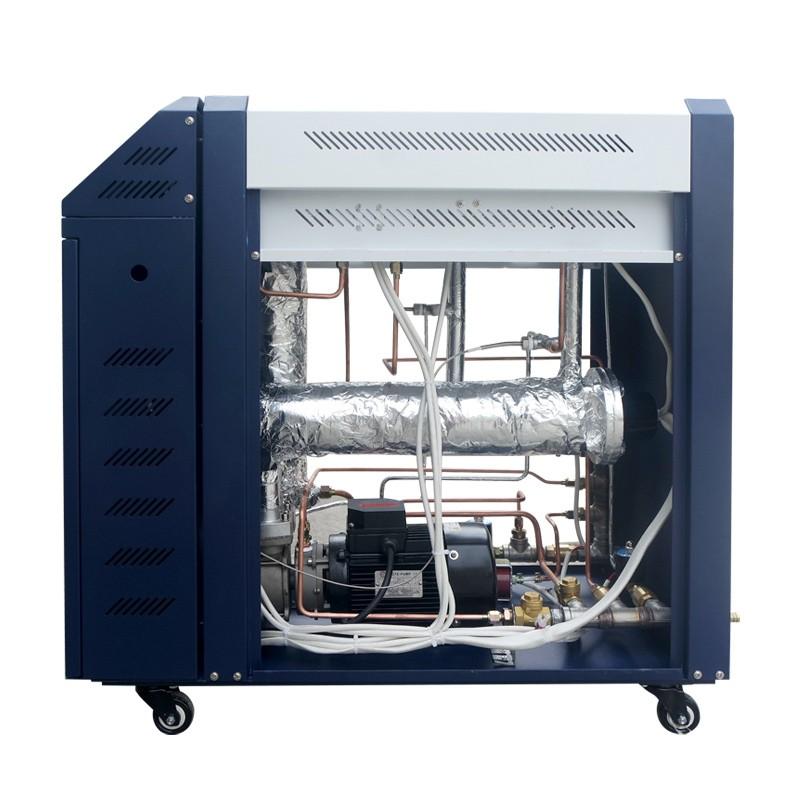

In terms of core configurations, it is equipped with a brand-name water pump that is not only high-temperature resistant and high-pressure resistant, but also operates with low noise and strong stability, thus efficiently driving the circulation of heat-conducting media. The heating pipeline is made of stainless steel through one-piece thickened forming, which not only has tight connections without leakage, but also has outstanding durability, so it can ensure efficient and stable heat transfer. It is equipped with a Schneider contactor and an isolated electrical control box, which not only has excellent heat insulation effect, but also can effectively delay the aging of electrical components, thereby prolonging the service life of the equipment. The pure copper inlet and outlet interfaces have good high-temperature resistance, and the built-in water pressure controller can precisely regulate water pressure, which not only further improves the temperature control accuracy, but also enhances the operational safety.
In addition, there is also a CE-certified model accredited by SGS, which not only complies with EU safety standards, but also can smoothly enter the European market for circulation, providing strong support for international business expansion.
Application Range
Product Advantages
-----------------------------
Production Process
Step 1: Component Pre - assembly
In the picture, blue racks, pumps and other components are neatly arranged, and workers are conducting pre - assembly operations. First, the initial assembly of racks and basic components is completed, preparing for the subsequent integration of core components, and ensuring the accurate alignment of each part to lay a solid foundation for the equipment structure.
Step 2: Complete Machine Integration
Multiple mold temperature controller main bodies are taking shape and entering the complete machine integration stage. Core components such as heating pipes, contactors, and pure copper interfaces are accurately combined with pre - assembled racks, realizing the integrated assembly of stainless steel pipelines, electrical control systems, etc., and completing the construction of the main body of the equipment.
Step 3: Factory Debugging
The finished mold temperature controllers enter the final debugging stage. A full inspection is carried out on the water pressure controller, solenoid valve, and temperature control system. The operation stability and temperature control accuracy are tested by simulating industrial scenarios, and potential problems such as leakage and noise are investigated, ensuring that the equipment reaches the best state before leaving the factory.
-----------------------------
-----------------------------
Why Choose Our Mold Temperature Controllers?
1. Strict Production Flow
Component Prep: Precise pre - assembly of key parts (racks, pumps) ensures accurate alignment from the start.
Full Integration: Seamless merging of heating pipes, control systems, etc., builds robust, high - performance units.
Thorough Testing: Rigorous factory checks (simulate real - world use) fix leaks, noise, and ensure stable, accurate temp control.
2. Quality - Built Design
Top - Tier Parts: High - temp brand pumps, stainless - steel pipes, Schneider contactors ensure long - term reliability.
Safe & Efficient: Isolated control boxes (heat insulation) and pure - copper interfaces (durable heat transfer) boost safety and production speed.
3. Flexible & Compliant
Power Choices: 6KW–12KW models fit small - batch to large - scale mold temp needs.
Global Ready: CE/SGS - certified units meet EU standards for easy global market entry.
4. All - Round Support
Tech Help: Expert guidance for installation, troubleshooting—get seamless integration.
After - Sales Care: Fast response to issues/minimize downtime—keep production running.
Choose us for reliable, adaptable mold temp controllers. We blend strict production, quality parts, and support to boost your efficiency and growth.
